Quick Details

  • Condition: New
  • Application: Film
  • Plastic Processed: PE
  • Blow Moulding Type: Extrusion Blow Moulding
  • Automatic: Yes
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: RUIHAO
  • Model Number: SD-3L 50B/55B/65B
  • Voltage: 220V/380V/400V/440V
  • Power(W): A37+B45+C37kw
  • Dimension(L*W*H): 9.5*4.5*7.5M
  • Weight: 8T
  • Certification: CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • machine type: 3 layer co-extrusion rotary die blown film machine
  • feature 1: 3 layer blown film machine
  • feature 2: 3 layer rotary die blown film machine
  • origin: made in china
  • suitable material: PP/PE
  • capacity: 380kg/h
  • film width: 100-4000mm
  • painting: depend on customer requirement
  • screw number: 3pcs screw
  • brand: ruihao

Packaging & Delivery

Packaging Details Simple Package
Delivery Time 30 days

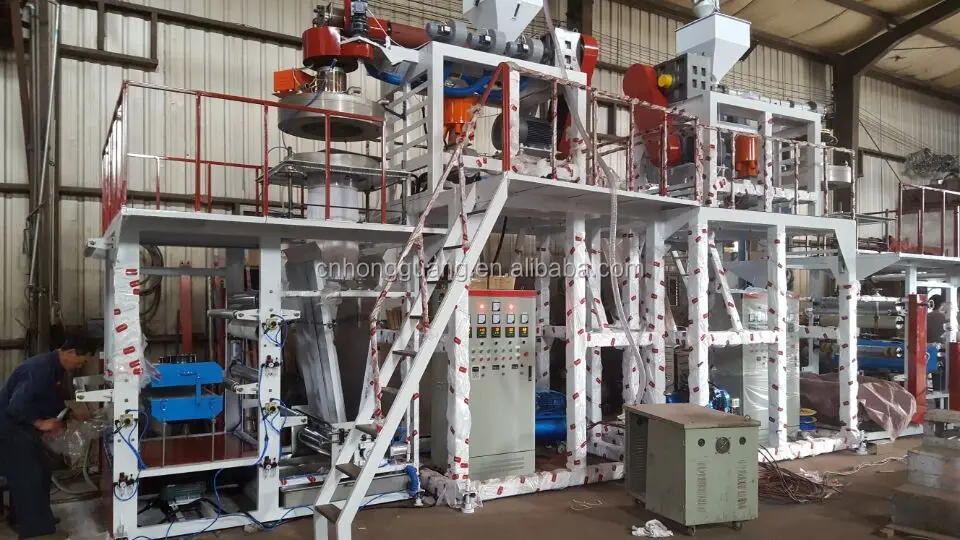

3 layer co-extrusion rotary die blown film machine

OPTIONAL  EQUIPMENT

1.         AUTO   LIADER ABC 3 layer rotary die head co-extrusion plastic blown film machine

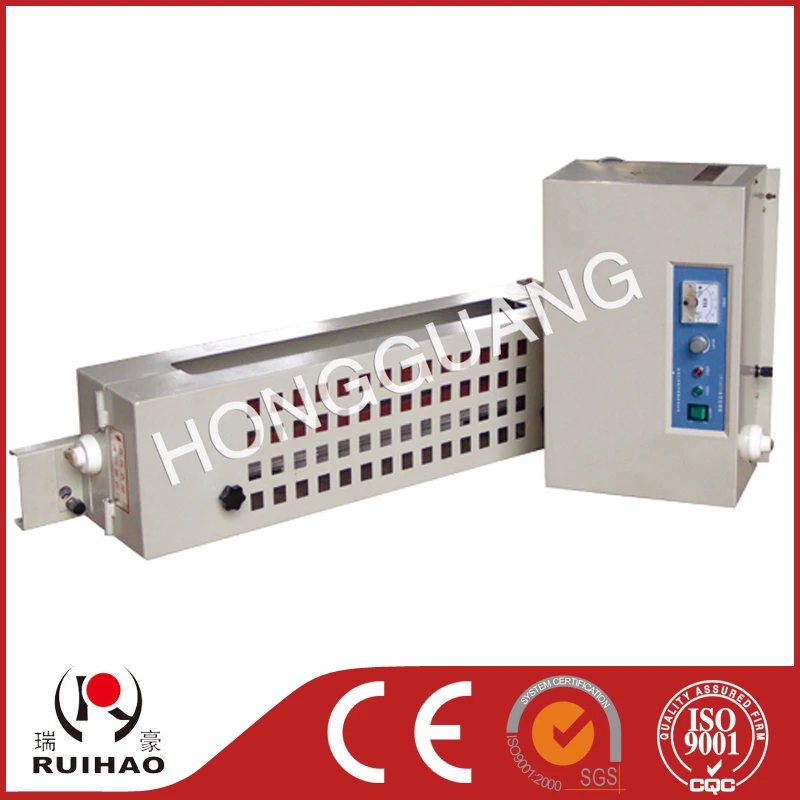

2.         CORONA

3.         AIR   COMPRESSOR

4.         AIR   COOLING   DEVICE



MODEL

SD-3L-50B

SD-3L-55B

SD-3L-65B

SUITABLE MATERIAL

LDPE LLDPE HDPE EVA

FILM WIDTH(mm)

800-1500

1200-2000

1600-2500

FILM THICKNESS (mm)

0.028-0.20

0.028-0.20

0.03-0.20

MAX.EXTRUSION OUTPUT

220kg/hr

290kg/hr

380kg/hr

EXTRUDER







SCREW DIAMETER(mm)

A¦Õ50 B¦Õ55 C¦Õ50

A¦Õ55 B¦Õ65 C¦Õ55

A¦Õ65 B¦Õ70 C¦Õ65

SCREW L/D LENGTH

28:1

SCREW MATERIAL

SACM-645/38 CRMOALA

CYLINDER MATERIAL

SACM-645/38 CRMOALA

CYLINDER COOLING

370w¡Á2/3

370w¡Á2/3

550w¡Á2/3

DRIVING MOTOR(Kw)

A18.5+B22+C18.5kw

A22+B37+C22kw

A37+B45+C37kw

TEMPERATURE CONTROL

3x3

3x3

4x3

AVERAGE POWER-CONSUME(Kw)

80

95

120

TYPE OF DIE







DIE SIZE(mm)

250/300

400

500

TEMPERATURE CONTROL

4

AIR RING

1

AIR BLOWER(Kw)

7.5

11

15

TAKE-UPUNIT







PINCH ROLLER (DIA. WIDTH)mm

¦Õ165¡Á1600

¦Õ190¡Á2100

¦Õ 190¡Á2600

TAKE-UP SPEED(m/min)

5-60

5-45

5-45

TAKE-UP MOTOR(Kw)

1.5

2.2

2.2

WINDING UNIT







TYPE

SURFACE FRICTION TYPE

WINDING MOTOR(Kw)

1.5

2.2

2.2

WINDING SPEED(m/min)

5-60

5-45

5-45

COVER DIMENSION(m)

9.5¡Á4.5¡Á7.5

10.5¡Á5.0¡Á79

11.5¡Á5.5¡Á10
